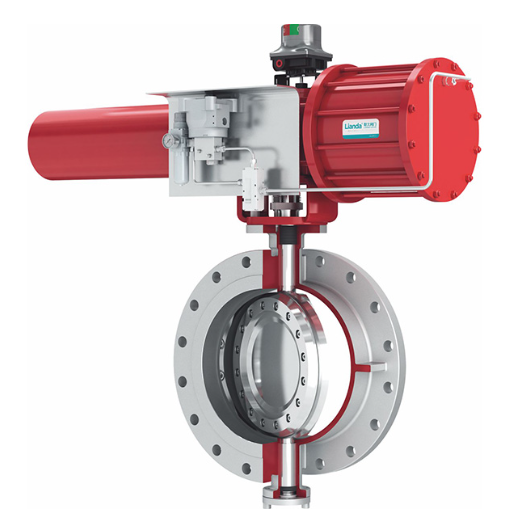

Triple eccentric hard seal butterfly valve
This product can meet the needs of high temperature, high pressure, strong corrosion, light wear and other working conditions, with light weight, compact structure, low operating torque and other advantages, while the dual functions of cutting, adjusting, can replace the conventional gate valve, globe valve and ball valve in many working conditions, widely used in metallurgy, chemical industry, petroleum, hot spot, light industry and other fields.
1. High-temperature pipeline 2. Steam lines for electric power 3. Negative pressure vacuum condition 4. Special for coal chemical vaporizer
1. High temperature and high pressure resistance
2.Large Cv value
3. Reliable sealing
4. Long service life
5. Low switching torque
6. Fire protection design
Structural Characteristics
Instructions
Stem seal
Low leakage packing (API 622 certified) for a more reliable seal at stem.
Simple appearance of the butterfly plate, the intensive design of the butterfly plate parts
the thickness of the butterfly plate is greatly reduced, and the valve has a larger Cv value, which makes the flow capacity greatly improved.
Valve seat seal ring universal design
Seal ring universal design, maintenance does not need to be done, can be replaced directly on site.
Fireproof structure design
the valve seal adopts metal to metal or metal to graphite structure, and the filler adopts flexible graphite to ensure the sealing reliability of the valve in the case of fire.
Packing loading seal
the packing place adopts disc spring loading design, long-term sealing is more reliable.
Long bearing design
The self-lubricating long bearing at the valve stem can keep the valve stem coaxial, eliminate the valve switch or valve vibration load, reduce friction torque, protect the valve stem.
All-metal sealing ring
greatly extend the service life of the valve, improve the working condition, can be used in the working condition containing a small amount of solid particle medium, reduce the number of maintenance.
